型號Model

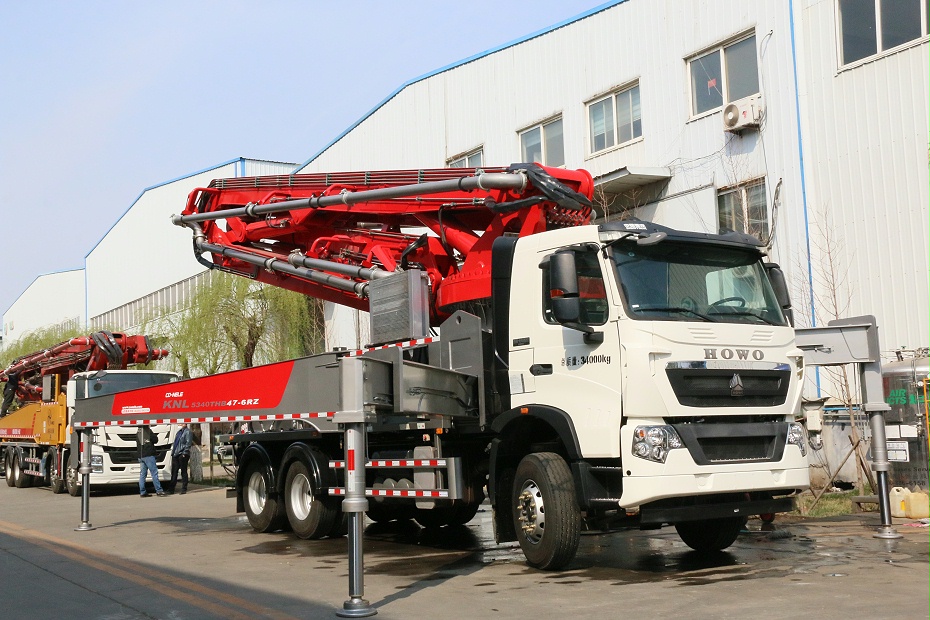

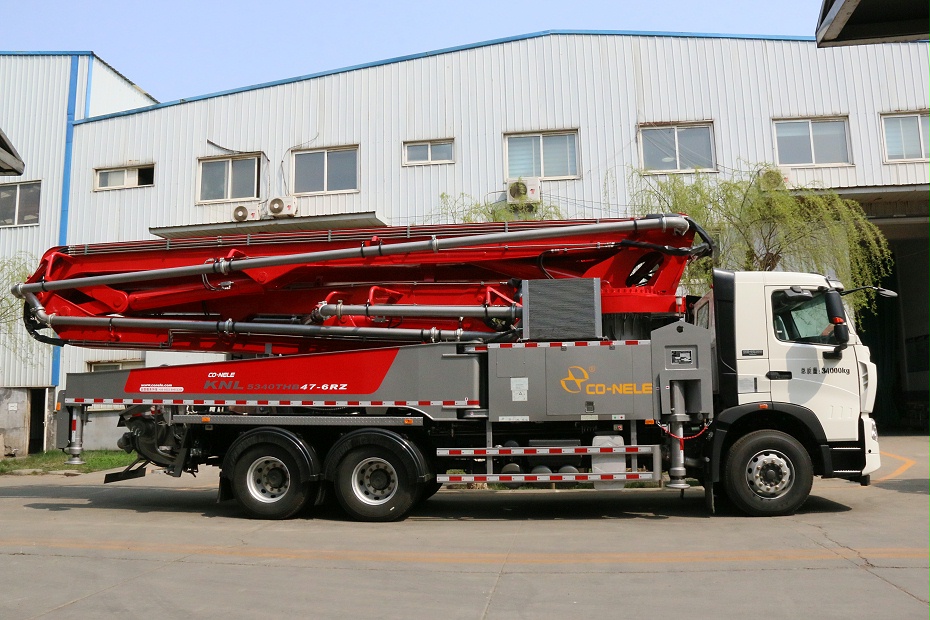

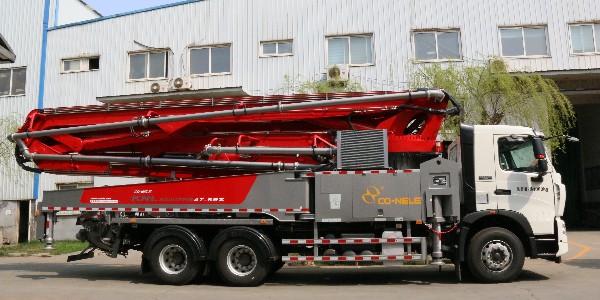

KNL5351THB 47-6RZ

項目

單位

值

泵送系統Pumping system

最大理論輸送量(高壓/低壓)Max. Theor. output(high/low pressure)

m³/h

62/105

混凝土最大出口壓力(高壓/低壓) Max. Theor. concrete output Pressure(high/low pressure)

MPa

9.5/5.6

額定工作壓力  Rated working pressure

MPa

32

泵送頻率(高壓/低壓) Pumping frequency(high/low pressure)

min^-1

15/25

料斗容積  Hopper capacity

L

450

上料高度 Filling height

mm

1250

液壓系統型式 Hydraulic system type

開式 Open loop

分配閥形式Distribution valve

S管閥 S valve

油缸缸徑×行程  Oil cylinder dia.×stroke

mm

φ140×φ90×1800

混凝土缸徑×行程Concrete cylinder dia.×stroke

mm

φ260×1800

液壓油冷卻Hydraulic oil cooling

風冷Air cooling

推薦塌落度 Recommended concrete slump

cm

12~23

最大骨料尺寸  Max. aggregate dimension

mm

40

臂架Placing boom

結構形式 Structure type

47-6RZ

最大布料高度 Placing depth

m

47

最大布料半徑 Horizontal distance

m

43

最大布料深度 Placing depth

m

36
